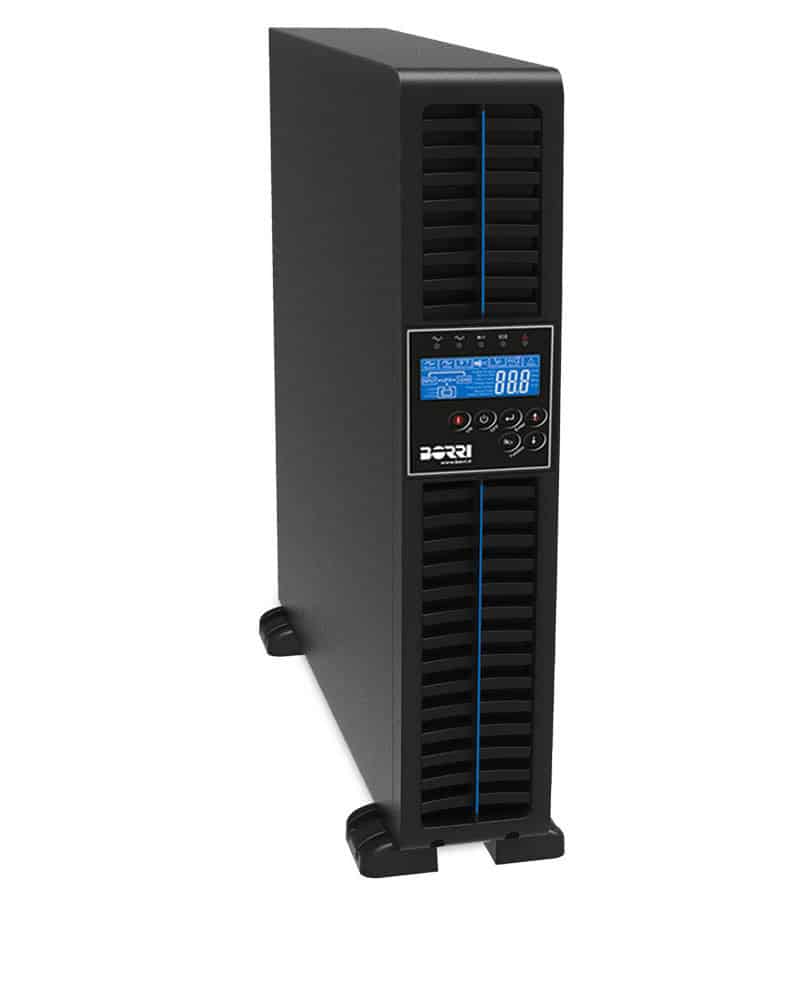

Borri GALILEO RT Rotation UPS 1000-3000 VA 1/1

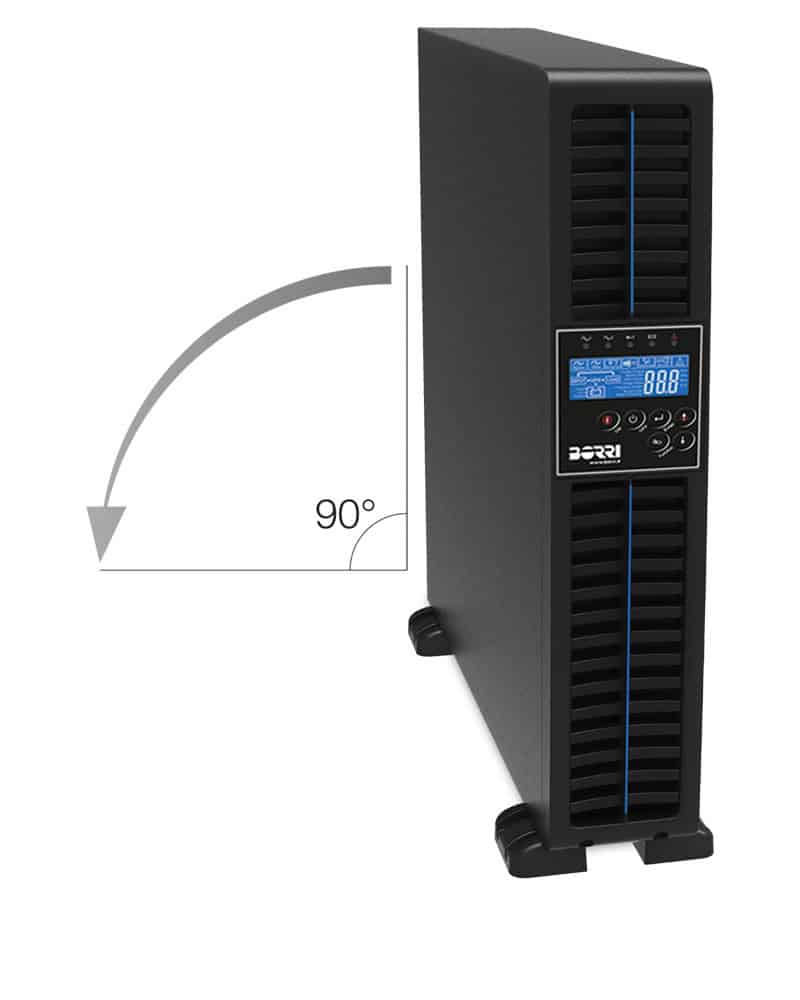

On-Line 1-phase UPS in Rotation Rack/TowerUPS System, ideal for small and medium businesses, networks and servers. High level of protection for networking equipment, security systems and critical applications.

SKU: MUPS000--1 Category: Tag:



  • On-Line double conversion technology protects from all power failures for maximum uptime.
  • Active harmonic power quality control with THD <3% for maximum compatibility with sources
  • Easy user-replaceable battery.
  • Battery extension box allowing additional autonomy time to be quickly added.
  • Automatic self-test and advanced battery management maximizing battery performance and extending battery life.
  • Borri Power Guardian user-friendly UPS management software with main power failures alert and system shutdown notification via SMS
  • On-line double conversion UPS from 1000 to 3000 VA.
  • High efficiency reducing energy costs and environmental impact.
  • Easy installation and set up.
  • Extendable runtime.
  • Input Power Factor 0.99 and THD <3%.
  • High double conversion efficiency and ECO mode for low running costs and environmental impact.
  • Smart cooling system ensuring further energy savings.
  • Full compliance with all international product standards.
  • Programmable switched outlet group for setting load priorities.
  • Remote emergency power off for immediate UPS shutdown.
  • Audible alarm alerts upon utility power and UPS status change.
  • One slot auto-sensing for communication cards.
  • USB and RS232 communication ports included.

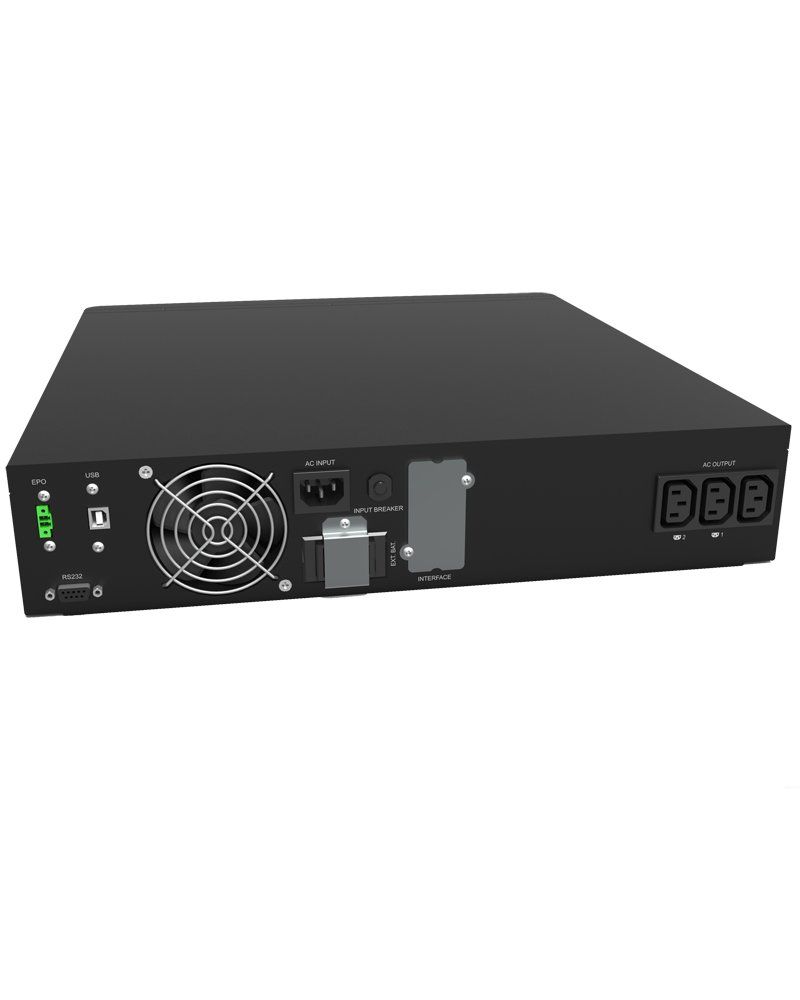

  • Three output receptacles (IEC 320-C13) for 1000 VA version.

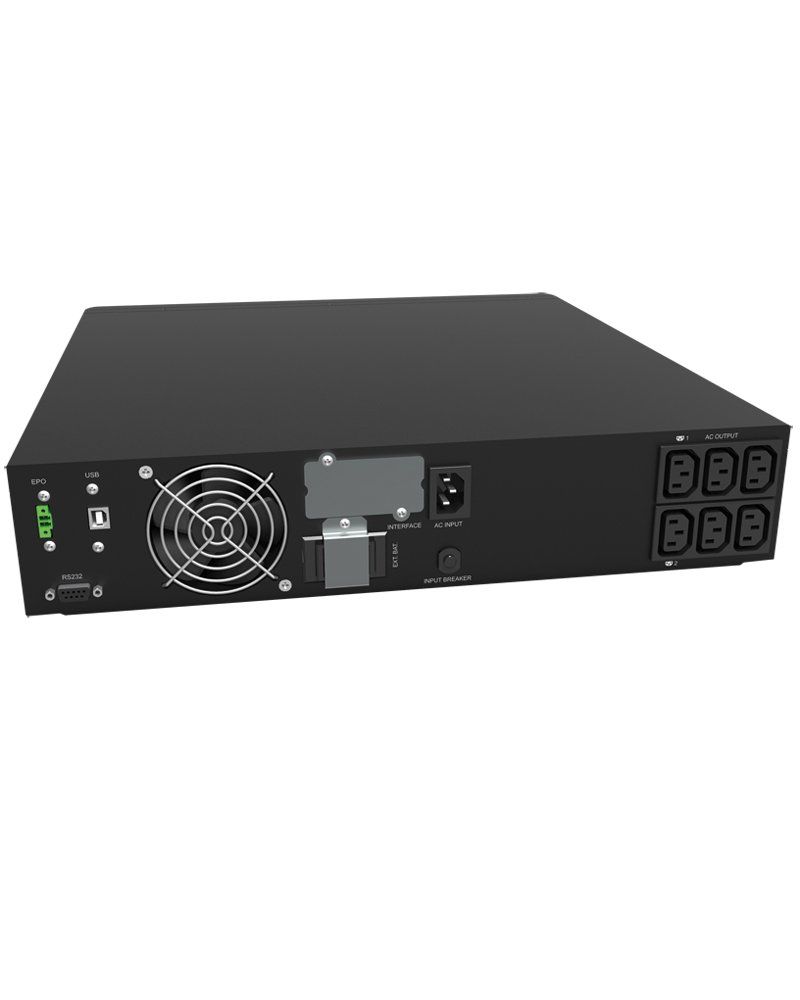

  • Six output receptacles (IEC 320-C13) for models from 2000 to 3000 VA versions.

Brochure Download

GALILEO RT 1000-3000 VA On-Line 1-phase UPS

UPS TypeRT (2U)*RT (2U)*RT (2U)*
Rating (VA)100020003000
Nominal power (W)90018002700
UPS dimensions WxDxH (mm)440x390x88440x475x88440x600x88
UPS weight (kg)121726.5


Connection typeIEC 320-C14IEC 320-C20
Nominal voltage230 Vac 1-phase
Voltage range195 to 260 Vac
Frequency and range50/60 Hz, 45 to 65 Hz
Power factor0.99
Current distortion (THDi)<3%


Connection type3 IEC 320-C136 IEC 320-C13
Nominal voltage230 Vac +/-1% 1-phase
Frequency50/60 Hz
Power factorAny power factor up to 0.9 lagging or leading without power derating
Overload capability105% continuous, 120% for 30 seconds,
150% for 10 seconds, >150% transfer to bypass
Mode of operationOn-line, Eco-mode


Autonomy time
internal battery
50% load121315
100% load666

*Rack/Tower ◆ Measurement conditions: optimised parameters, fully charged battery, 0.7 PF

Connectivity and function extensions

Front panelDisplay LCD, status LED, function keys
CommunicationIncluded: USB, EPO, RS232.
Optional: dry contact card, SNMP card.
Compatible platforms: Windows, Linux, Mac


Operating temperature range0°C to +40°C
Altitude (AMSL)<1000 m without power reduction, > 1000 m with reduction of 0.5% per 100 m
Audible noise at 1m (dBA)<50

Standards and certifications

Quality assurance,
environment, health and safety
ISO 9001:2008, ISO 14001:2004, BS OHSAS 18001:2007
SafetyIEC/EN 62040-1
EMCIEC/EN 62040-2
