UPS Battery Replacement

UPS Battery Replacement and Installation for any make and model of UPS system.

All Manufacturers

Engineers trained on APC, Borri, Riello, Tripp Lite, Eaton and more

Main Battery Dealer

UPS Battery Replacement with Yuasa, Fiamm, APC, CSB and more

UPS Battery Replacement

The batteries are critical to the integrity of your UPS system. Most modern UPS systems will perform and monitor short battery tests on a regular basis, however it is also essential to maintain these systems to ensure they will operate correctly when needed.

UPS Power Services can supply, install, maintain or replace a wide variety of batteries, the most common being sealed lead acid (VRLA) with a 5 or 10 year design life.

UPS Battery Installation

Our battery installation and UPS battery replacement team will perform the following tasks:

Site survey to fully understand the task and site access

  • Produce a risk assessment and method statement (RAMS)
  • Co-ordinate and arrange delivery, positioning and installation of new batteries together with battery racks/cabinets
  • Install new DC fuses and switchgear (as specified)
  • Connect all batteries to UPS and create a complete system
  • Installation of battery monitoring system (as specified)
  • If we are providing a UPS battery replacement service, we may be able to isolate and change one parallel battery string at a time so that the integrity of the overall system is not compromised during the replacement process
  • Pack and remove old batteries from site for recycling and correct disposal. Providing a hazardous waste disposal certificate
  • If required, perform a system load bank test, discharging the batteries whilst monitoring battery performance and thermal imaging survey

Approved Yuasa UPS Battery Partner

UPS Power Services are an approved Yuasa Battery Partner. This means we have direct access to extensive Yuasa battery stock located in the UK, full technical support from our trained UPS specialists and are supported by Yuasa battery application engineers.

UPS Power Services and Yuasa battery engineers are equipped for onsite specification, sizing, technical quotations, full electrical installation and after sales support and testing.

Yuasa batteries set the industry benchmark for UPS batteries in the UK and globally for over 30 years. The reason is simple – premium quality, unmatched reliability, long life and advanced engineering with years of application expertise.

    UPS Battery Maintenance

    Regular UPS battery maintenance is required to prolong the life of the batteries and to detect any weak or faulty battery blocks. We carry out the following checks:

    • Examining the batteries for any swollen, distorted or split casings
    • Measure battery cell and battery string voltages
    • Check for signs of corrosion
    • Check the tightness and security of battery terminal connections
    • Environmental checks, such as room temperature, cleanliness etc.
    • Battery discharge test (via UPS front panel or system load bank )

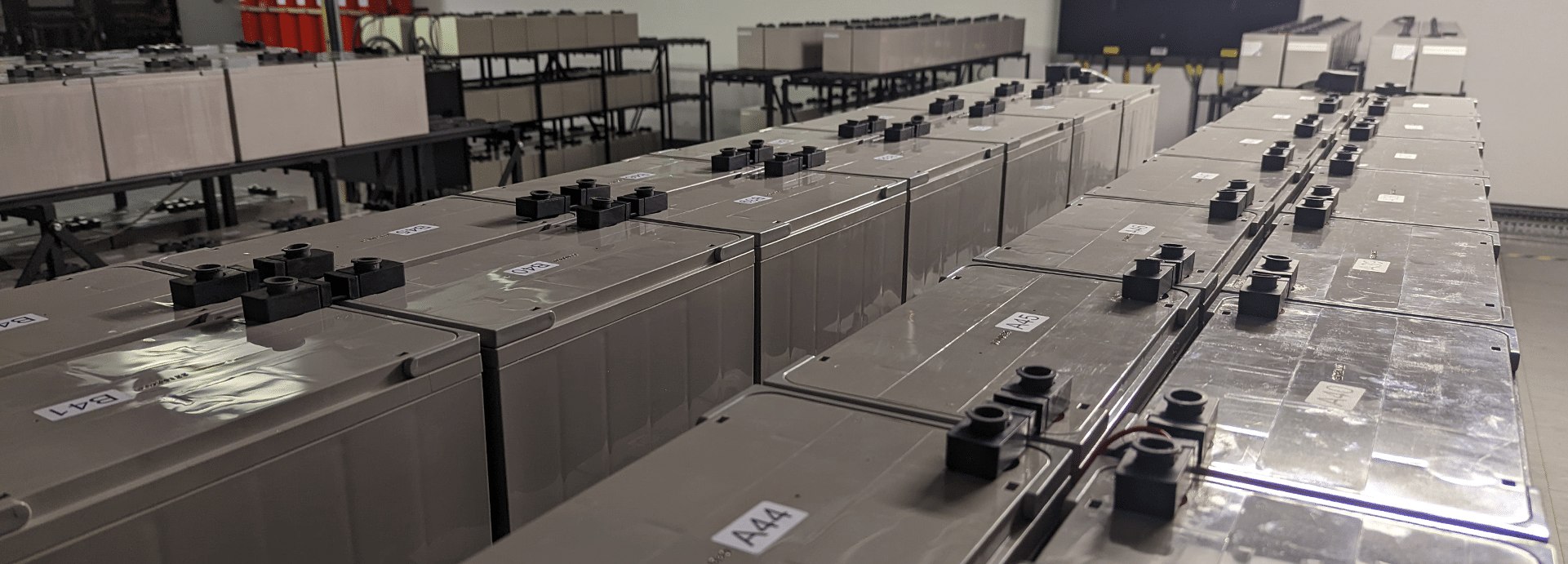

    UPS Battery Rack Design

    Every battery system design has to meet customer’s needs and accommodate any special requirements. Consideration is given to:

    • Battery requirements and type; such as autonomy (back-up) time and whether the batteries should be sealed lead acid (VRLA), vented lead acid, plante or nickel cadmium (NiCd)
    • Battery design life and the number of charge/discharges cycles
    • Parallel battery bank advantages
    • Room temperature conditions
    • Battery housing type; open, cladded or enclosed rack, matching UPS/battery cabinets etc
    • Room restrictions; false/raised floors (are battery rack leg extensions required?), dimensions (size) or surface load (weight)
    • Room accessibility; easy access, straight push, no steps, lift capacity, stairs and other obstacles
    • Battery monitoring system; continuously monitoring your battery health
    • Flexibility of individual battery string fusing and switchgear
    • DC cable lengths and power losses associated with long cable runs

    Do You Need Help?

    Please get In touch to discuss anything UPS or battery related. Our Battery Experts can help guide you through any battery replacement, design or installation query you my have. We have battery stock available for urgent deliveries and engineers on standby at short notice for battery installations and replacements. Please call us on 0800 112 3654.

      9

      UPS Battery Installation

      Our battery installation and UPS battery replacement team will perform the following tasks:

      • Site survey to fully understand the task and site access
      • Produce a risk assessment and method statement (RAMS)
      • Co-ordinate and arrange delivery, positioning and installation of new batteries together with battery racks/cabinets
      • Install new DC fuses and switchgear (as specified)
      • Connect all batteries to UPS and create a complete system
      • Installation of battery monitoring system (as specified)
      • If we are providing a UPS battery replacement service, we may be able to isolate and change one parallel battery string at a time so that the integrity of the overall system is not compromised during the replacement process
      • Pack and remove old batteries from site for recycling and correct disposal. Providing a hazardous waste disposal certificate
      • If required, perform a system load bank test, discharging the batteries whilst monitoring battery performance and thermal imaging survey

      UPS Battery Rack Design and Project Management

      Every battery system design has to meet customer’s needs and accommodate any special requirements. Consideration is given to:

      • Battery requirements and type; such as autonomy (back-up) time and whether the batteries should be sealed lead acid (VRLA), vented lead acid, plante or nickel cadmium (NiCd)
      • Battery design life and the number of charge/discharges cycles
      • Parallel battery bank advantages
      • Room temperature conditions
      • Battery housing type; open, cladded or enclosed rack, matching UPS/battery cabinets etc
      • Room restrictions; false/raised floors (are battery rack leg extensions required?), dimensions (size) or surface load (weight)
      • Room accessibility; easy access, straight push, no steps, lift capacity, stairs and other obstacles
      • Battery monitoring system; continuously monitoring your battery health
      • Flexibility of individual battery string fusing and switchgear
      • DC cable lengths and power losses associated with long cable runs

      Get Free Site Survey

      Replacement UPS Batteries

      Leading brand UPS replacement batteries
      We are a premium distributor of Yuasa batteries and also have partnerships with the most commonly accepted UPS battery suppliers including CSB, Exide, Enersys and Fiamm. Contact us for a competitive UPS battery replacement proposal.

      Related UPS Battery Services

      UPS Battery Health Check

      if you have any doubts about the condition of your uninterruptible power supply or stand-by emergency lighting system, we can offer a comprehensive check-up, service and UPS battery replacement service for all leading UPS brands, including AEC, Riello, MGE, APC, Eaton, Powerware, Chloride, Gamatronic, Borri, Huawei, New Wave and others.

      UPS Battery Testing

      Using the latest technology our advanced battery testing not only measures battery impedance and voltage but also, chemical sulfation and dryout. (see FAQ’s below) This gives a more accurate look at the overall battery health. The test is non intrusive and can be completed without having to dismantle the battery string saving time & money.

      UPS Battery Disposal

      We manage the safe and environmentally correct disposal of replacement UPS batteries in line with Harzardous Waste Regulations. As a registered carrier  we ensure the legal requirements associated with the removal, transportation and disposal of waste batteries are fully complied with at all times, contact us to arrange disposal.

      UPS Battery Testing

      Advanced UPS Battery Testing

      Using the latest technology our advanced battery testing not only measures battery impedance and voltage but also, chemical sulfation and dryout. (see FAQ’s below) This gives a more accurate look at the overall battery health.

      The test is non intrusive and can be completed without having to dismantle the battery string saving time and money. Having this advanced battery testing completed as part of ongoing normal maintenance builds a picture and a history for every battery in a string, giving early warnings to failure and anomalies at a fraction of the price compared to an installed monitoring system. Identifying a bad battery in a string early can not only prevent failure at a critical moment but also ensure the entire battery string isn’t put in danger of being damaged by one single bad block. Following each test a report is compiled that identifies each battery tested and its condition, comparing this information with past tests will indicate the current health level of the battery set and help determine when the batteries need budgeting for full replacement.

      UPS System Load Battery Test

      A UPS system load test is the only 100% way of testing a complete system, however, this test although very accurate, carries risks. Ultimately we put the system to work doing the job it was designed to do, protecting the critical load. If there is a failure, the load could be lost and therein lies the risk.  Normally on the commissioning of a system, a load test would be conducted before completion and sign off.  You would be forgiven for thinking why would I ever put my critical load at risk, the system has been running fine for the last year since commissioning I don’t need this test. But you need to consider, have you had any power cuts, has the system ever been switched, will all the elements of the system work together as expected, have you increased the system load.



      By having regular non intrusive testing and a good maintenance program, obviously the risk is reduced, having a UPS engineer on site completing the test reduces the risk further. If you have a N+1 system the risk is almost 0% as a test on one system at a time can be completed using an artificial load.

      We would recommend a system load test every time the electrical infrastructure is changed, like a battery replacement, new electrical switch gear or every 24 months is possible.

      UPS Battery Impedance Testing

      Battery impedance testing has long been the way for a non intrusive test on UPS batteries. Placing a special tester across each battery takes a measurement of the battery internal resistance, this reading can be compared to the manufacturers specifications or previous readings to give an indication of the battery health.

      Sulfation and grid corrosion are main factors for the internal resistance rising. Every time a battery is discharged and recharged there is some sulfation and grid corrosion that takes place, this is quite normal as all batteries have a design life. Impedance testing can provide early identification of any single blocks that are failing prematurely. If a battery blocks’ internal resistance gets so high that it becomes open circuit, this will cause detriment to the remaining batteries and cause the entire battery string to fail. Impedance testing batteries as part of normal ongoing maintenance can build a picture of battery health and give an early warning to possible failures.

      Thermal Imaging UPS Battery Testing

      Using a thermal imaging camera we can identify any hot spots on a live system. This is ideal for critical systems that cannot be isolated for other types of intrusive testing. A thermal image will show any connection defects causing excess heat on the associated isolators and switchgear in addition to the battery terminals. It also gives an indication of airflow around and between batteries and can serve as an  early warning indicator for insufficient cooling or any high impedance connections.

      If there are any issues identified, the report can be used to get permission for a controlled shutdown for further investigation and testing. It is a totally non intrusive test and can be completed with no disruption to business. Adding thermal imaging testing to ongoing UPS maintenance is cost effective and reduces the chance of thermal runanway.

      Approved Yuasa UPS Battery Partner

      UPS Power Services are an approved Yuasa Battery Partner. This means we have direct access to extensive Yuasa battery stock located in the UK, full technical support from our trained UPS specialists and are supported by Yuasa battery application engineers.

      UPS Power Services and Yuasa battery engineers are equipped for onsite specification, sizing, technical quotations, full electrical installation and after sales support and testing.

      Yuasa batteries set the industry benchmark for UPS batteries in the UK and globally for over 30 years. The reason is simple – premium quality, unmatched reliability, long life and advanced engineering with years of application expertise.

      Bulk Discounts Available:

      Call on 0800 112 3654

      UPS Battery Single Block Replacement

      Recent testing may have highlighted a rogue battery block or entire string fault. With correct technical matching of the battery characteristics followed by a careful equalisation charge, we can replace either a single block or full battery string in your current installation. Get in touch for a UPS battery replacement quote.

      All UPS vendors use a handful of leading battery suppliers in their original equipment. We can provide options for exact battery replacement of the existing blocks or an option of a technically comparative battery.

      UPS Batteries Bulk Purchase

      UPS Power Services are an approved Battery Partner. This means we have direct access to extensive battery stock located in the UK, full technical support from our trained UPS specialists and are supported by battery application engineers.

      Our long standing relationship with the likes of CSB and Yuasa means we are able to secure some of the best UK pricing for battery replacements along with specialist UPS support. We are able to offer competitive bulk purchase discounts and super efficient delivery, often same day delivery or next day delivery around the UK for emergency projects and critical battery replacements following failure or breakdown.

      Bulk UPS Battery Replacements

      Please get In touch to discuss anything UPS or battery related. Our Battery Experts can help guide you through any battery replacement, design or installation query you my have. Please call us on 0800 112 3654.

      F.A.Q.

      Its common knowledge that the battery system is the weakest link in a UPS and that battery failure is the leading cause of load loss and associated downtime.

      Understanding how to correctly store, install, check and maintain a UPS battery system will help prevent ultimate failure and also extend the service life of your current installation.

      Lets take a look at some frequently asked questions when it comes to UPS battery replacement and UPS battery maintenance.

      Can you change batteries on any UPS system?
      Yes is the short answer, depending on the size and type of UPS would determine how complex the replacement would be, but the principles are all the same. Our skilled battery engineers have worked on many systems over the years.
      Do you only supply Yuasa batteries?

      No, Yuasa is our prefered supplier. The level of quality from Yuasa and the warranty is exeptional in our experiance, they can supply almost any block in the UK within a day. We are a Yuasa main dealer, so can supply what we feel are the best batteries at the very best price. However if it is a specific battery you require we do have accounts with all the leading battery manufacturers.

      What does VRLA stand for?
      Valve Regulated Lead Acid.
      VRLA batteries work on the oxygen recombination principle. However, the recombination process is not 100% efficient. So over time, the internal pressure increases, and a certain amount of gases have to be released to maintain the ideal pressure. This is achieved with the help of one-way, pressure-sensitive valves which open when the internal pressure increases above a certain threshold and allow the excess gases to be vented. That is why these batteries are called VRLA or valve regulated lead acid batteries. Excess gases are also produced if these batteries are overcharged or discharged at rates higher than the recommended rate.
      What is sulfation and grid corrosion?
      Sulfation and grid corrosion are the main killers of lead acid batteries. Sulfation is a thin layer that forms on the negative cell plate if the battery is allowed to dwell in a low state-of-charge. During use, small sulfate crystals form, but these are normal and are not harmful. During prolonged charge deprivation, however, the amorphous lead sulfate converts to a stable crystalline and deposits on the negative plates. This leads to the development of large crystals that reduce the battery’s active material, which is responsible for the performance. If caught in time, an equalising charge can reverse the condition. Grid corrosion can be reduced with careful charging and optimisation of the float charge.
      Why do batteries need to be cooled?
      Heat is a killer of all batteries, but high temperatures cannot always be avoided. As a guideline, each 5°C rise in temperature cuts the life of a sealed lead acid battery in half. This means that a VRLA battery for stationary applications specified to last for 10 years at 25°C would only live 5 years if continuously exposed to 30°C and 30 months if kept at a constant temperature of 35°C. Once the battery is damaged by heat, the capacity cannot be restored.
      What is the "end of useful life" for a UPS battery?
      The IEEE defines “end of useful life” for a UPS battery as being the point when it can no longer supply 80% of its rated capacity in ampere-hours. When your battery reaches 80% of its rated capacity, the aging process accelerates, and you should replace it.
      How long can I store my batteries?
      When batteries are stored disconnected from a charger, their life will decrease. Due to the self-discharge characteristics of lead-acid batteries, it is recommended you charge them every three to four months of storage. After 12 months, permanent loss of capacity will start to occur. To prolong shelf life without charging, store batteries in a cooler environment.

      Why are UPS Batteries so Important?

      It is the battery that provides the UPS with power to continue running in the event of a mains failure.

      An old or badly maintained battery set could affect the autonomy time of your uninterruptible power supply and result costly downtime should you get a mains failure.

      All lead acid batteries, wet or gel, are prone to natural decay and have a design life of five, ten or twelve years. This is caused by metals and acid sharing the same plastic container.

      How Does Age Affect Battery Life?

      Natural degrading is typically about 5% per annum, depending on the type and brand of battery. It is because of this degradation that you need to check the batteries to be sure that you will get your required and expected runtime during a mains failure. If the batteries aren’t in great condition then the autonomy time will be dramatically reduced and a planned, safe shutdown will not be achieved. Although regular maintenance and ideal environmental conditions can extend the working life of UPS batteries, they will eventually need replacing.

      Do You Have Doubts About Your UPS Battery Health?

      If you have any doubts about the condition of your uninterruptible power supply or stand-by emergency lighting system, we can offer a comprehensive check-up, service and UPS battery replacement service for all leading UPS brands, including AEC, Riello, MGE, APC, Eaton, Powerware, Chloride, Gamatronic, Borri, Huawei, New Wave, and any other make or model.

      Our nationwide service is available 24/7 and includes safe licensed disposal of all waste.
