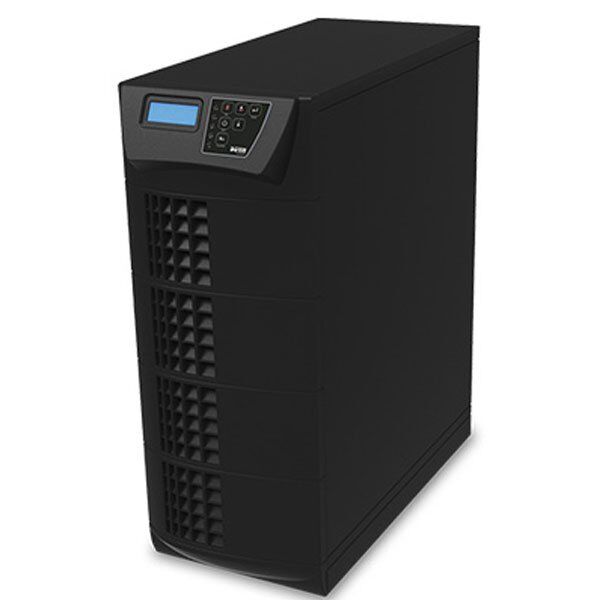

Borri LEONARDO Tower UPS 6kVA – 10kVA 1/1 with internal batteries

Price range: £1,258.28 through £1,626.00

On-Line 1-phase UPSĀ in Tower version, ideal for networks and servers, small data centers.

  • On-line double conversion UPS from 6 to 10 kVA.
  • Parallel redundant configuration maximizing the availability.
  • Extendible runtime.
SKU: MUPS0010T Category: Tag:

Description



  • On-Line double conversion technology corrects all power failures for maximum reliability and protection.
  • Battery extension box providing longer autonomy.
  • Active harmonic power quality control with THD <3%.
  • Automatic self test.
  • Input Power Factor 0.99 and THD <6%.
  • High double conversion efficiency and ECO mode for low running costs and environmental impact.
  • Smart cooling system ensuring further energy savings.
  • Full compliance with all international product standards.
  • Internal manual bypass for safe and easy maintenance.
  • Remote emergency power off for immediate UPS shutdown.
  • Audible alarm alerts upon utility power and UPS status change.
  • Two slots auto-sensing for communication cards.
  • RS232 communication port providing UPS management.
  • Hardwired with two input, output and bypass wires
    from 6 to 10 kVA.

Brochure Download

LEONARDO T 6-10 kVA On-Line 1-phase UPS

UPS Type T* T*
Rating (kVA) 6 10
Nominal power (kW) 5.4 9
UPS dimensions WxDxH (mm) 290x645x748
UPS weight (kg) 86 96

Input

Connection type Hardwired 2w (rectifier), 2w (bypass)
Nominal voltage 230 Vac 1-phase
Voltage range 160 to 280 Vac
Frequency and range 50/60 Hz, 45 to 65 Hz
Power factor 0.99
Current distortion (THDi) <6%

Output

Connection type Hardwired 2w
Nominal voltage 230 Vac +/-1% 1-phase
Frequency 50/60 Hz
Power factor Any power factor up to 0.9 lagging or leading without power derating
Overload capability 104% continuous, 150% for 160 seconds,
>150% transfer to bypass
Mode of operation On-line, Eco-mode

Battery

Autonomy time
internal battery(min)ā—†		 50% load 25 17
100% load 9 6

*Tower with internal battery ā—† Measurement conditions: optimised parameters, fully charged battery, 0.7 PF

Connectivity and function extensions

Front panel Display LCD, status LED, function keys
Communication Included: RS232 card, EPO.
Optional: RS485 card, dry contact card, SNMP card.
Compatible platforms: Windows, Linux, Mac

Environmental

Operating temperature range 0Ā°C to +40Ā°C
Altitude (AMSL) <1000 m without power reduction, > 1000 m with reduction of 0.5% per 100 m
Audible noise at 1m (dBA) <50

Standards and certifications

Quality assurance,
environment, health and safety		 ISO 9001:2008, ISO 14001:2004, BS OHSAS 18001:2007
Safety IEC/EN 62040-1
EMC IEC/EN 62040-2
Marking CE
